SH-120L / RF Shield box / RF Shielded Test Enclosure / 쉴드박스 / 차폐박스 / chamber / 챔버 / 중고 렌탈 매각 매입

SH-120L / RF Shield box / RF Shielded Test Enclosure / Shielding Enclosure / RF Shielding

RF 쉴드박스 / 차폐박스 / chamber / 챔버 / 윌테크놀지 / will technology / 중고 렌탈 매각 매입

​

​

Dimension : 320mm x 270mm x 200mm(SH-120L)

Shielding Meterial : Al 6mm~20mm

Surface Finish : Epoxy Powdered Coating(with Customer's Logo)

Weight : about 11Kg

Box Body and Cover

Auto Air Cylinder

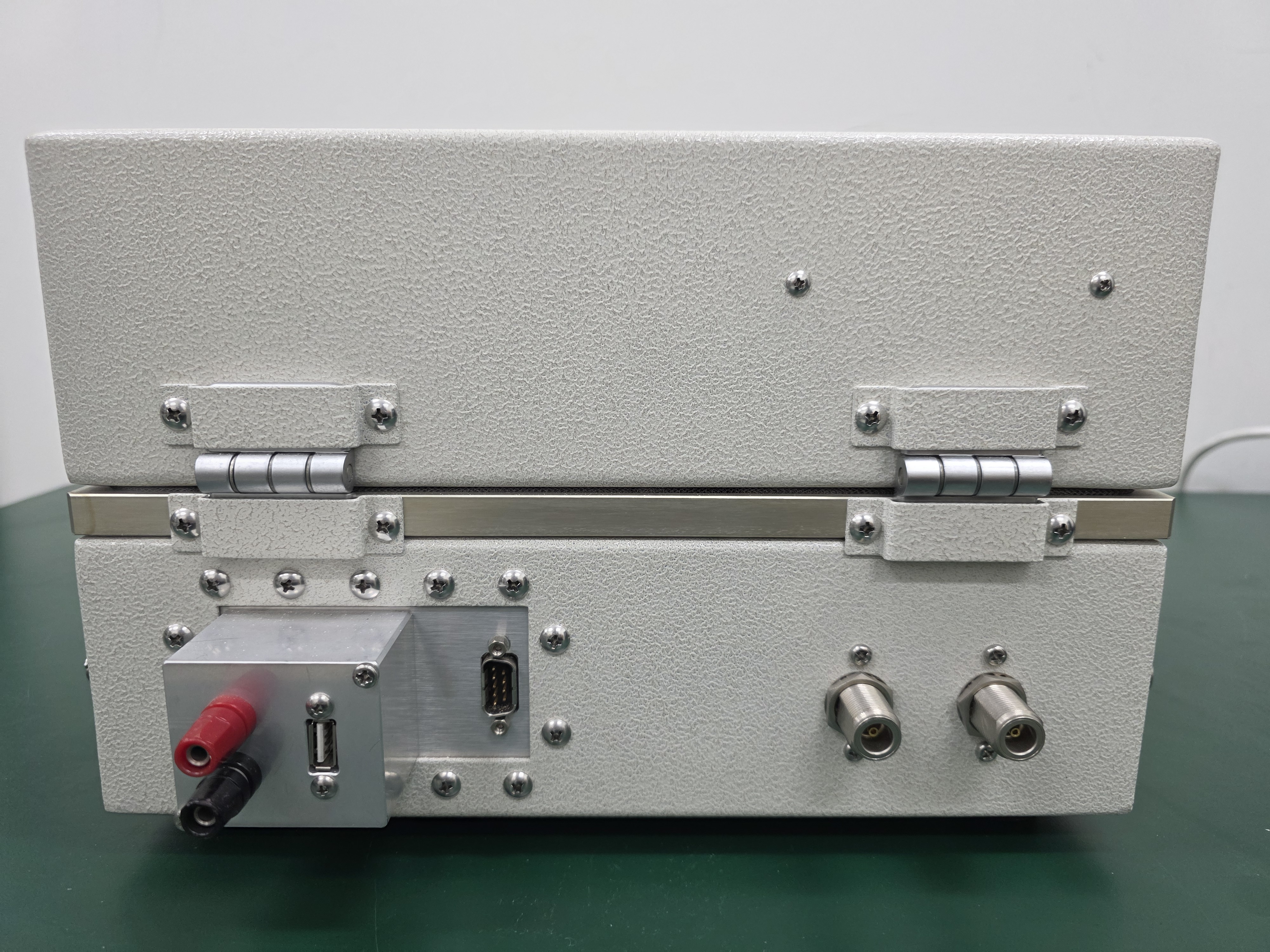

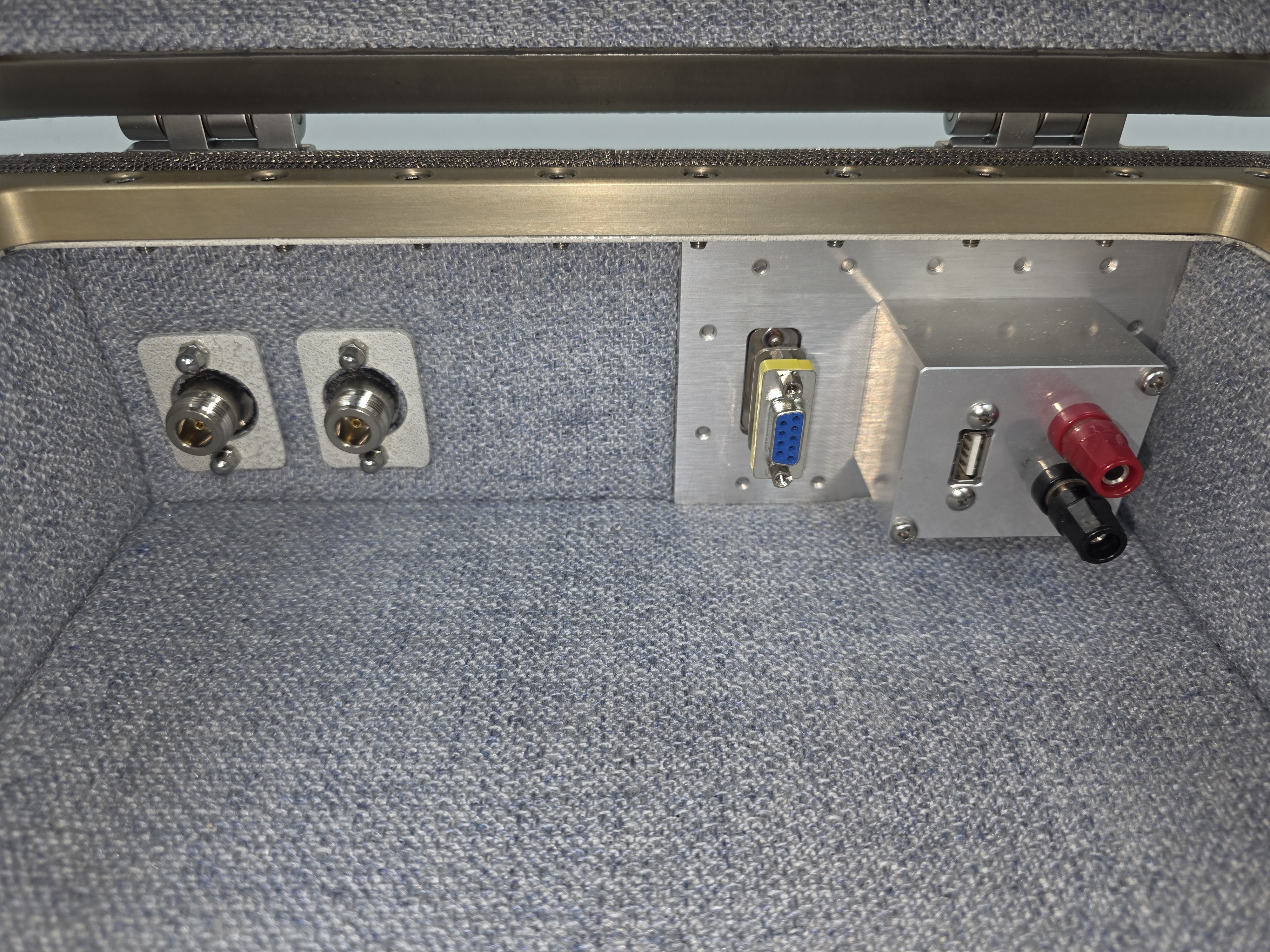

Filter Box for Connectors - RF Connector (N) (Basic) / D-Sub 9Pin / DC Power Jack (+,-): 0~24V

​

PC Monitoring Line : Common Mode Test Set

1) Rated Voltage : DC 500V

2) Insertion Loss : 100MHz~2.4GHz - 65dB

3) Isolation Resistance : 100mΩ

4) Connectors : D-Sub / Gender Changer

5) DC Power Input : 0~24V

​

Shielding Gasket : Transfer Impedance Test

1) Shielding Effectiveness : 10KHz-1GHz,100dB

2) Monel Wire Mesh Type : QQN281 Class A

​

Microwave Absorber - Wave Guide Arch Test (Polyurethane Foam)

1) 2GHz : -17dB

2) 9GHz : -20dB

3) 18GHz : -23dB

​
